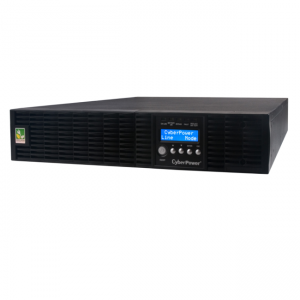

CyberPower OL3000ERTXL2U is a high-performance UPS featuring online double-conversion topology, which provides seamless pure sine wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.
By manually setting the UPS to ECO Mode, the UPS automatically detects the input power quality and discerns whether it should operate in Line Mode or ECO Mode. Under poor power conditions, the UPS will run in Line Mode, which guarantees the highest level of protection and the best possible power quality. When the input power quality is acceptable, the UPS switches to ECO Mode, which increases the total output power efficiency by up to 95%.
Features:
Online (Double Conversion) UPS Topology
Energy Saving TechnologyGenerator Compatible
Overload Protection
Critical/ Non-critical Load Outlets
Zero Transfer Time
Smart Battery Management (SBM)
Hot-swappable Batteries
Extended Battery Module (EBM)
Surge and Spike Protection
EMI and RFI Filtration
Phone/ Fax/ Modem/ DSL/ Network Protection
LCD Status Display
Detachable LCD Panel
Emergency Power Off (EPO) Port
PowerPanel® Management Software
SNMP/ HTTP Remote Management Capability
Rack/ Tower Convertible Configurations
Specifications:
General
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 93%
Active PFC Compatibility: Yes
Input
Generator Compatibility: Yes
Nominal Input Voltage (Vac):
200
208
220
230
240
Input Voltage Range (Vac): 190 ~ 300
Adjustable Voltage Range (Vac):
0~60% Load for 120 ~ 139 Vac
0~70% Load for 140 ~ 159 Vac
0~80% Load for 160 ~ 179 Vac
0~90% Load for 180 ~ 189 Vac
0~100% Load for 190 ~ 300 Vac
Input Frequency (Hz):
50 ± 10
60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 15
Input Power Factor: 0.99
Input Connector Type: IEC C20 ?
Detachable Power Cord Plug Type: IEC C20
Output
Capacity (VA): 3000
Capacity (Watts): 2700
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac):
200 ± 2%
208 ± 2%
220 ± 2%
230 ± 2%
240 ± 2%
Output Voltage Setting: Configurable
On Battery Frequency (Hz):
50 ± 0.5%
60 ± 0.5%
Output Frequency Setting: Configurable
ECO Mode Voltage Tolerance:
± 10 %
± 15 %
Overload Protection: Internal Current Limiting , Circuit Breaker
Overload Protection (Line Mode): 105~125% Load for 1 min, 125~150% Load for 10 sec
Overload Protection (Battery Mode): 105~130% Load for 10 sec, 130~150% Load for 2 sec
Overload Protection (Bypass Mode): Circuit Breaker
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD?3%
Harmonic Distortion (Non-linear Load): THD?5%
Internal Bypass: Automatic Bypass , Manual Bypass
Outlet(s) - Total: 9
Outlet Type:
IEC C13 x 8 ?
IEC C19 x 1?
Outlet(s) - Battery & Surge Protected: 9
Outlet(s) - Critical Load (CL): 5
Outlet(s) - Non-Critical Load (NCL): 4
Typical Transfer Time (ms): 0
Battery
Runtime at Half Load (min): 9
Runtime at Full Load (min): 3
Typical Recharge Time (Hours): 5
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pack: RBP0076
RBP Quantity (pcs): 1
Battery Quantity (Each RBP) (pcs): 6
Battery Voltage (Each RBP) (V): 72
Single Battery Capacity (AH): 12 V 9 AH
Extended Battery Module (EBM): BPE72V60ART2US
Max. EBM Quantity (pcs): 10
Surge Protection & Filtering
Surge Suppression (Joules): 1335
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
Management & Communications
LCD Panel: Yes
Detachable LCD Panel: Yes
LCD Information Display: Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log
LCD Setting & Control: Mode Setting , Alarm Setting , Input & Output , Battery Setting , Fault & Warning , Communication , Event & Log , Security Setting , Language
LED Indicators: Power On , Line Mode , Battery Mode , Bypass Mode , Battery Capacity , Low Battery , Overload , UPS Fault , Wiring Fault , Replace Battery
HID Compliant USB Port(s): 1
Serial Port: Combo (RS232 + Dry Contact)
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault , Replace Battery
Power Management Software: PowerPanel® Business Edition
SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205
Physical
Form Factor: Rack/Tower
Enclosure Construction: Metal
Color: Black
Rackmount Rail: Yes
Rackmount Ears: Yes
Physical Size - UPS Module
Dimensions (WxHxD) (mm.): 433 x 88 x 600
Weight (kg.): 32
Installed Rack Height (U): 2
Environmental
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) (%): 0 ~ 90
Operating Elevation (feet/meters): 0-10,000 feet (0-3,000 meters)
Storage Temperature (°C): -15 ~ 45
Storage Relative Humidity (Non-condensing) (%): 0 ~ 95
Online Thermal Dissipation (BTU/hr): 1139
Certifications
Certifications: CE , BSMI , C-Tick
RoHS: Yes
