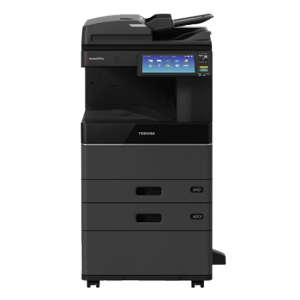

This e-STUDIO 2510AC series is packed with industry-leading technology and innovations designed to help workgroups connect, integrate and simplify.
Touch and Swipe with Ease
An easy to see, tablet style 9’’ colour touch screen panel works intuitively, helping you find instructions, functions and commands with the swipe of the finger
Multi-Station Print Solution
Toshiba’s internally developed Multi-Station Print Solution allows users to send print jobs from their desktop and retrieve them at any convenient MFP by simply swiping their badge and authenticating at that device.
Envelopes- the Perfect Fit
A special envelope cassette is available to hold up to 50 envelopes, making sure each one is fed and printed in the same place, every time.
High Volumes
A high monthly copy volume up to 67200 for e-STUDIO 2010AC & 84,000 for e-STUDIO 2510AC. Toner yields are 33,600 CMY and 38400 K pages (at 5%) respectively.
Advance e-BRIDGE Technology
Built on Linux®, this next-generation e-BRIDGE architecture features an Embedded Web Browser, a fast dual-core processor, 4GB RAM and a 320GB Self Encrypting Drive (SED) enabling the MFP to easily drive Toshiba's internally developed solutions or even third-party applications.
A Clever Inside Pocket
We’ve put the Authentication Card Reader inside the machine for a cleaner look and safer use.
Specifications:
Copy System: Indirect Electrostatic Photographic Method/OPC/LED Printing/Heat Roller Fusing
Display: 10.1” Color WSVGA Touch Screen Tilting Display
Copy Speed: 20/25 PPM (LT)
First Copy Out:
Color: 9.5/9.5 Seconds
Monochrome: 7.1/7.1 Seconds
Warm-Up Time: Approx. 21 Seconds
Copy Resolution: 600 x 600 dpi
Stack Feed Bypass: ST-R to LD, Envelope
Multiple Copying: Up to 999 Copies
Paper Capacity Standard: 350 Sheets/Max. 2,900 Sheets
Original Feed: Optional 100-Sheet RADF
Scan Speed & Weights RADF Scan: Up to 73 IPM (Monochrome or Color), Simplex: 9.3-41.8 lb Bond,
Duplex: 13.3-41.8 lb Bond
Max. Original Size: LD
Paper Feed Sizes
Drawer 1: 250 Sheets-ST-R to LD
Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD
Opt. Paper Feed Unit: 550 Sheets-ST-R to LD
Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD
Opt. 550-Sheet Drawer for PFP-ST-R to LD
Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG
Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only
Paper Weights Standard:
250 Sheets-16 lb Bond-90 lb Index
Stack Feed Bypass: 100 Sheets-16 lb Bond-110 lb Index
Opt. Paper Feed Unit: 550 Sheets-16 lb Bond-90 lb Index
Opt. 550-Sheet Paper Feed Pedestal: 16 lb Bond-90 lb Index
Opt. 550-Sheet Drawer for PFP: 16 lb Bond-90 lb Index
Opt. Envelope Cassette for PFP: 16 lb Bond-90 lb Index
Opt. 2,000-Sheet Tandem LCF (Pedestal Type): 17-28 lb Bond
Duplex: Standard Automatic Duplex Unit: 16 lb Bond-90 lb Index
Reproduction Ratio: 25% to 400%
Max Duty Cycle
Max. 67.2K Month (e-STUDIO 2010AC)
Max. 84K Month (e-STUDIO 2510AC)
Weight: Approx. 126 lb
Approx. Dimensions: 22.6” (W) x 23” (D) x31” (H)
CMYK Toner Yield CMY: 33.6K, BK: 38.4K @ 5%
Power Source: 120 Volts, 50/60 Hz, 12 Amps
Power Consumption: Maximum 1.5kW (120V)
CPU: Intel Atom™ 1.33GHz (Dual-Core)
Memory: 2GB, Max. 4GB
Hard Disk Drive: 320GB Self-Encrypting Drive
e-BRIDGE Next Print Specifications
PDL: PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG
Print Speed: 20/25 Pages Per Minute (LT)
Print Resolution: 600 x 600 dpi (5 bit) 600 x 1,200 dpi (1 bit) PS3 Only
Operating Systems: Windows Server® 2008 R2, R2 SP1, 2008/SP2, Windows® 7,8.1,10, Windows Server® 2012/R2, Windows Server® 2016, Macintosh® (macOS X 10.7.4, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13), Unix®, Linux®
Network Protocols: TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk for Macintosh® Environments
Printing Protocols: SMB, LPR/LPD, IPP (Ver.2.0) w/Authentication, AppleTalk® PAP or EtherTalk, Port 9100 (Bi-Directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP
Print Drivers: Windows Server® 2008 SP2 (32-bit, 64-bit) Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit,64-bit), Windows® 8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows Server® 2016, Windows® 10 (32-bit, 64-bit), macOS X 10.7.4, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13
Interface: RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-Speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth
Wireless Device: AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple® App Store or Google Play)
Device Management: TopAccess, EFMS 6.30 (e-BRIDGE Fleet Management Software)
Account Control: Up to 10,000 Users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows® Domain) or Login Name/ Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function
Accessibility Features: Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts
Security Features: User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL/TLS (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS, SYSLOG), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408)* with HCD-PP v1.0, IEEE802.1X (Wired/Wireless), Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp, Role Based Access Control, Secure PDF, Digital Signature for Firmware Update, Integrity Check Function, Image Log, Card Authentication, NFC Authentication *Conformance with HCD-PPv1.0 in High Security Mode.
Environmental Stds.: ENERGY STAR® (V2.0), EPEAT Gold
Certification: WHQL (Windows® 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell®, Citrix®, SAP, AirPrint® and Mopria
Scan Specifications
Scan Speed: RADF Scan: Up to 73 IPM (Monochrome or Color)
Scan Modes: Standard: Full Color, Auto Color, Monochrome, Grayscale
Scan Resolution: 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi
File Formats: Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.)Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.)
Image Compression: Color/Grayscale: JPEG (High, Middle, Low)
Facsimile Specifications
Compatibility: Super G3
Data Compression: MH/MR/MMR/JBIG
Transmission Speed: Approx. 3 Seconds Per Page
Fax Modem Speed: Up to 33.6 Kbps
Memory Transmission: 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job
Scan Speed: 0.7 Seconds Per Page, Maximum 73 IPM
e-Filing Specifications
Operation Method: Color Touch Screen Control Panel or Client PC
Number of Boxes: 1 Public Box, 200 Private User Boxes
Capacity of Boxes: 100 Folders Per Box, 400 Documents Per Folder/Box, 200 Pages Per Document
