Connect. Integrate. Simplify.
Advanced E-Bridge Next Technology
Toshiba’s next-generation e-BRIDGE architecture features an embedded web browser, 4 GB RAM and the Toshiba secure hard disk drive enabling the MFP to easily drive Toshiba’s internally developed solutions or even third-party applications.
Create a lasting impression with high-quality document output in colour and monochrome with a resolution of up to 600 dpi x 1200 dpi.
Simple, Smart And Stylish.
A new 10.1” tablet-style touch screen with an embedded web browser is easy to use and customisable to meet your needs.
Flexible integration with third-party solutions applications, an embedded web browser brings the workflow to one location, at your fingertips. This is all part of the bold new look being introduced across our new e-STUDIO series.
Operability
Check and proof your work on the fly with FAX Preview (of received FAX) and an enhanced scan preview complete with the ability to rotate theimage and change the page.
Seamless Connectivity To The Cloud
Optional e-BRIDGE Plus Connectors for Microsoft OneDrive, Google Drive and Dropbox let you send your documents directly to or print from these cloud services via the MFP. Supports Business Cloud Services (Office 365) with authentication by NFC.
Enhanced Customising Functions
So you can enjoy greater userability we have enhancemed the User Interface customising functions and strengthened our embedded apps platform. We've also enhanced the scanning function by allowing you to customise the scan size.
Built In Convenience
A choice of optional card readers not only gives you fast and convenient access to your print jobs but also increases data security. As does the new security standard HCD-PP (Hard Copy Device Protection).
Responsibility for the Planet
Innovation ensures that our environment is part of the equation, which is precisely what we do at Toshiba. This state-of-the-art MFP is RoHS compliant and uses recycled plastics and a low-power Super Sleep Mode to save resources.

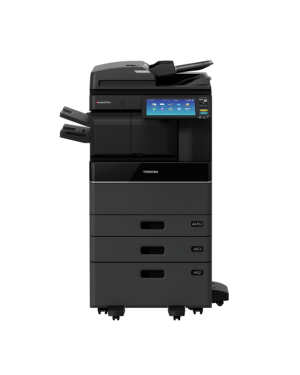

The e-STUDIO2010AC Series complies with the following international environmental standards, with certifications in various overseas markets for Energy Star.
Specifications:
General
Control Panel: 10.1" Color WVGA Touch Screen Tilting Display
Dimensions & Weight: 575 (W) x 586 (D) x 662 (H) mm and Approx. 57 kg
Paper Size & Weight: Cassette: A5R-A3, 60-163 g/m2. Bypass: 100 x 148 mm-A3 mm, 52-209 g/m2.
Controller Type: Toshiba e-BRIDGE Next
Warm-up Time: Approx. 13 Seconds from low power mode
Inner Output Tray: 550-sheet capacity
Paper Capacity: 1 x 250 sheets (Cassettes), 1 x 100 sheets (Bypass). Maximum 2,900 sheets
Memory: Toshiba Secure HDD 320 GB. Std 2MB RAM, Max 4GB RAM
Print Speed: Colour: 20 ppm (A4)
Automatic Duplex: Automatic Duplex Unit (60-163 gsm)
Interface: RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n Wireless LAN, Optional Bluetooth
Print
Resolution: 600 x 600 dpi, 600 x 1,200 dpi (1 bit, PostScript driver only)
Page Description Languages: PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG
Print Functions: Universal Printer Driver, Driver Templates, Driver plug-ins*, Print from USB, Hold print, Tandem printing, Email Direct Printing
Supported Systems: Windows® Vista, Windows Server 2008/R2, Windows 7, 8, 8.1, 10, Windows Server 2012/R2, Macintosh® (Mac OS × 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux®
Scan
Scan Functions: Scan to File, E-mail, e-Filing, WS Scan, USB, Scan Preview
Resolution: Maximum 600 x 600 dpi
Scan Speed: Reversing Automatic Document Feeder2): up to 73 ipm (300 dpi) in colour and monochrome
Document Feeder: 100-sheet capacity, A5R-A3, 35-157 g/m2
Scan Modes: Standard: Full Color, Auto Color, Monochrome, Grayscale
File Formats: Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, PDF/A, PDF/A-2, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.)
Fax
Transmission Speed: Up to 33.6 Kbps
Incoming Fax Routing: Send to e-Filing, File (SMB or FTP of IPX), E-mail, I-Fax and PSTN-FAX (I-FAX function)
Communication: Super G3
Network Fax: Windows Vista SP2 (32 & 64 bit), Windows Server 2008 SP2 (32 & 62bit), Windows Server 2008 R2 SP1 (64 bit), Windows 7 SP1 (32 & 64bit), Windows 8/8.1 (32 & 64 bit), Windows Server 2012/2012 R2 (64 bit), Windows 10 (32 & 64bit)
Compression: MH/MR/MMR/JBIG
Copy
Resolution: Scan: 600 x 600 dpi Print: 600 x 600 dpi, 2400 x 600 dpi with smoothing
Colour Modes: Auto-Colour (ACS), Full Colour, Twin Colour, Mono Colour, Monochrome
First Copy Output Time: Colour: Approx. 9.5 seconds, Monochrome: Approx. 7.1 seconds
Colour Settings: Hue, Saturation, Colour Balance, RGB adjustment 5 one-touch modes
Zoom: 25% to 400% platen and Document Feeder
Copy Modes: Black, Full Colour, Auto Colour, Twin Colour, Mono Colour and Auto Colour Selection (ACS)
Copy Functions: Electronic Sort, Rotate Sort, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode
