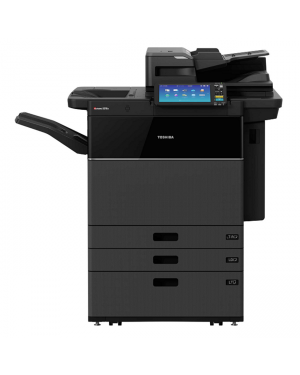

A modern A3 monochrome system which meets all demands
Complex tasks have now been made simple. With our solutions-ready software, this device can be tailored to your individual requirements.
A crisp, clean monochrome output at an impressive 55 ppm.
Via the new and improved user interface, with just a swipe of a finger it is easier than ever to access all your functions and apps.
Fax preview allows the user to view received faxes before printing them.
Specifications:
General
Print & Copy Speed: 55 ppm (A4), 27 ppm (A3)
Warm-up Time: Approx. 15 seconds from low power mode
Paper Size & Weight:
Cassettes: A5R-320 x 460 mm, 60-256 g/m²
Tandem LCF: A4, 60-256 g/m²
Bypass: 100 x 148 mm-330 x 483 mm, 60-300 g/m², banner paper (up to 313.4 x 1,200 mm, 90-163 g/m²)
Paper Capacity:
2 x 540 sheets (Cassettes) + 2,320 sheets (Tandem LCF), 1x 120 sheets (Bypass)
Maximum: 6,020 sheets
Automatic Duplex: A5R-320 x 460 mm, 60-256 g/m²
Controller Type: Toshiba e-BRIDGE Next
Control Panel: 26 cm (10.1") Multi-Touch Colour Panel
Memory: Toshiba Secure HDD 320 GB**, 4 GB RAM
Interface:
10Base-T/100Base-TX/1000Base-T,
High-Speed USB 2.0, WLAN* (IEEE802.11b/g/n), Bluetooth*, Wi-Fi Direct*
Dimensions & Weight: 955 x 698 x 1,227 mm (W x D x H), 195 kg
Print
Resolution:
600 x 600 dpi, 1 bit,
2,400 x 600 dpi with smoothing,
1,200 x 1,200 dpi, 2 bit (equiv. 3,600 x 1,200 dpi) with PostScript driver only
Page Description Languages: PCL5e, PCL5c, PCL6 (PCL XL), XPS, PDF and PostScript 3 compatible
Supported Systems: Windows 10/8.1/7/Server 2008 (32/64 bit), Windows Server 2016/Server 2012 R2/Server 2012/Server 2008 R2 (64 bit), Mac OS X 10.6.8-10.13, Linux/Unix, Citrix, Novell SLES, SAP, AS/400
Network Protocols:TCP/IP (IPv4/IPv6), IPX/SPX, EtherTalk, NetBios over TCP/IP
Mobile Printing: e-BRIDGE Print & Capture, AirPrint, Mopria Print Service, Google Cloud Print
Print Functions: Universal Printer Driver, Driver Templates, Driver plug-ins*, Print from USB, Hold print, Tandem printing, E-mail direct printing
Scan
Resolution: Maximum 600 x 600 dpi
Scan Speed: up to 240 ipm (300 dpi) in colour and monochrome via Dual Scan Document Feeder
Scan Modes: Auto-Colour (ACS), Colour, Greyscale, Monochrome
File Formats: JPEG, Multi/Single Page TIFF/XPS/PDF, Secure PDF, Slim PDF, PDF/A (A-1, A-2), Searchable PDF (and other formats like DOCX, XLSX)*
Scan Functions: WS Scan, Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP, FTPS, IPX/SPX, Local), Meta Scan*, OCR scan*, Scan to Box (e-Filing), WIA, TWAIN
Copy
Resolution:
Scan: 600 x 600 dpi
Print: equiv. 2,400 x 600 dpi with smoothing
First Copy Output Time: Approx. 5.2 seconds
Zoom: 25-400% (platen), 25-200% (DSDF)
Copy Modes: Text, Text/Photo, Photo, Printed Image, Map, Image Smoothing
Copy Functions: Electronic Sort, Rotate Sort, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode
Fax
Communication: Super G3, G3 - (opt. 2nd line), Internet Fax T.37
Transmission Speed: Approx. 3 seconds per page
Compression: JBIG, MMR, MR, MH
Fax Memory: 1 GB Transmission/Reception
Network-Fax: Driver for Windows 10/8.1/7/Server 2008 (32/64 bit), Windows Server 2016/Server 2012 R2/Server 2012/Server 2008 R2 (64 bit)
Incoming Fax Routing: To shared folders (SMB, FTP, IPX/SPX), E-Mail, e-Filing
